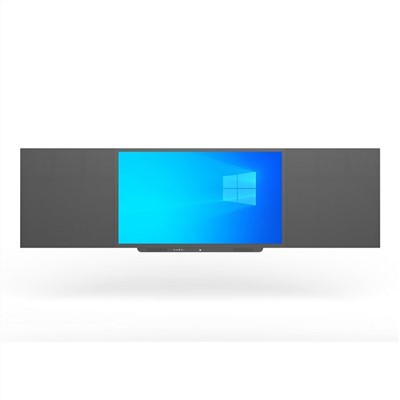

86 Inch Interactive BlackBoard

1. Display size: 86", display scale: 16:9;
2. Screen brightness: ≥ 350cd / m², screen contrast: 5000:1;
3. Physical resolution: HD 3840 * 2160;

Send Inquiry

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

86 Inch interactive BlackBoard , it is Cpacitance Touch Class Interactive Board Smart Boards in the Classroom
- Android & Windows System
- The Writing Board of the Secondary Screen
- Support Android Whiteboard Function
- Support Floating Menu Function & Wireless MIC Function
- With Energy Saving Function, Separate Listening Function & Smart U Disk Lock Function

- It applies The first super large copper inductive capacitor touch screen

image003(001)

image005(001)

Product Basic Parameters

Basic Parameters to 86 Inch All in one Display BlackBoard
Item	IVIEWX 86 Inch All in one Display BlackBoard Smart Blackboard
Code	IX-B86
Main Design	Toughened glass	Optical Bonded, Anti Glare, toughened glass, supports regular chalk, dust-free chalk and whiteboard sylus pen.
Front interface	USB3.0 x 3，HDMI input x 1，Touch USB x 1, USB-Type C x 1
Shell	The strong anodized metal frame is made using high-strength alloys.
Audio configuration	15W x 2, 8Ω. Full frequency with amplification
Display System	Screen size	86 inch Diagonal
Backlight type	DLED
Resolution	3840*2160
Screen scale	16:09
Viewing angle	178°(V)/178°(H)
Touch System	Touch Technology	Optical Bonded PCAP touch
Touch Point	20touch points
Touch Panel	4mm anti glare toughened glass
Touch writing	Finger, Active and Passive Stylus
Android System	System	Android 6.0
CPU	CORTEX A53 x 4 1.5GHz
RAM	2 GB
Flash	8 GB
OPS PC Computer	System	Windows 10
CPU	i3 / i5 / i7 (Optional)
Storage	4GB / 8GB (Optional)
Main board	H81/H110/H310/B250 (Match accord to CPU)
Hard disc	128GB / 256GB (Optional)
Power Consumption	Rated power	450W
Standby power	0.5W
Working voltage	AC110~220V/50Hz~60Hz
Measurements	Machine size	1983.2 x 1210.3 x 114.5 (with wall plate)mm/ 780.79476.5045.08inches
Package size	2165 x 1340 x 275mm/ 852.36527.56108.27inches
Weight	Machine NW	Approx 161KG / 354.2 lbs
Machine GW	Approx 225KG / 495 lbs
Blackboard NW	Approx 32KG / 70.4 lbs
Blackboard GW	Approx 56KG / 110 lbs

Picture of 86 Inch All in one Display BlackBoard in Multimedia Teaching Rooms

image007(001)

Picture of 86 Inch All in one Display BlackBoard in Shool Class Rooms

image008(001)

Conference Rooms

image010(001)

Product Of Qualification Of Multi-touch IX-B86 Smart White Board

6.3

6.4

6.3.1

Our core competitiveness is that we are a factory. We can make our own goods and ensure delivery, as well reasonable price. Our touch technology can't be done by others. Our touch screen technology is capacitive copper induction and yellow light chip technology introduced from Japan;
